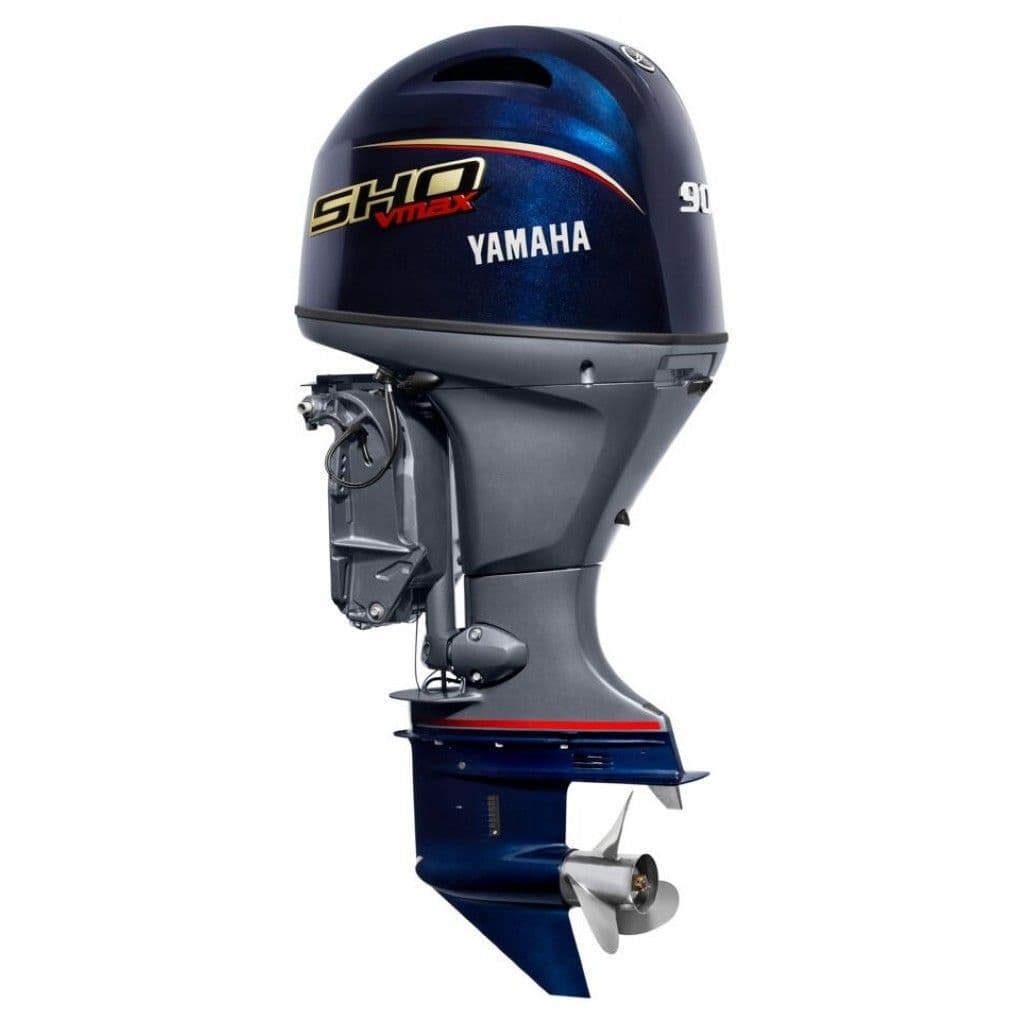

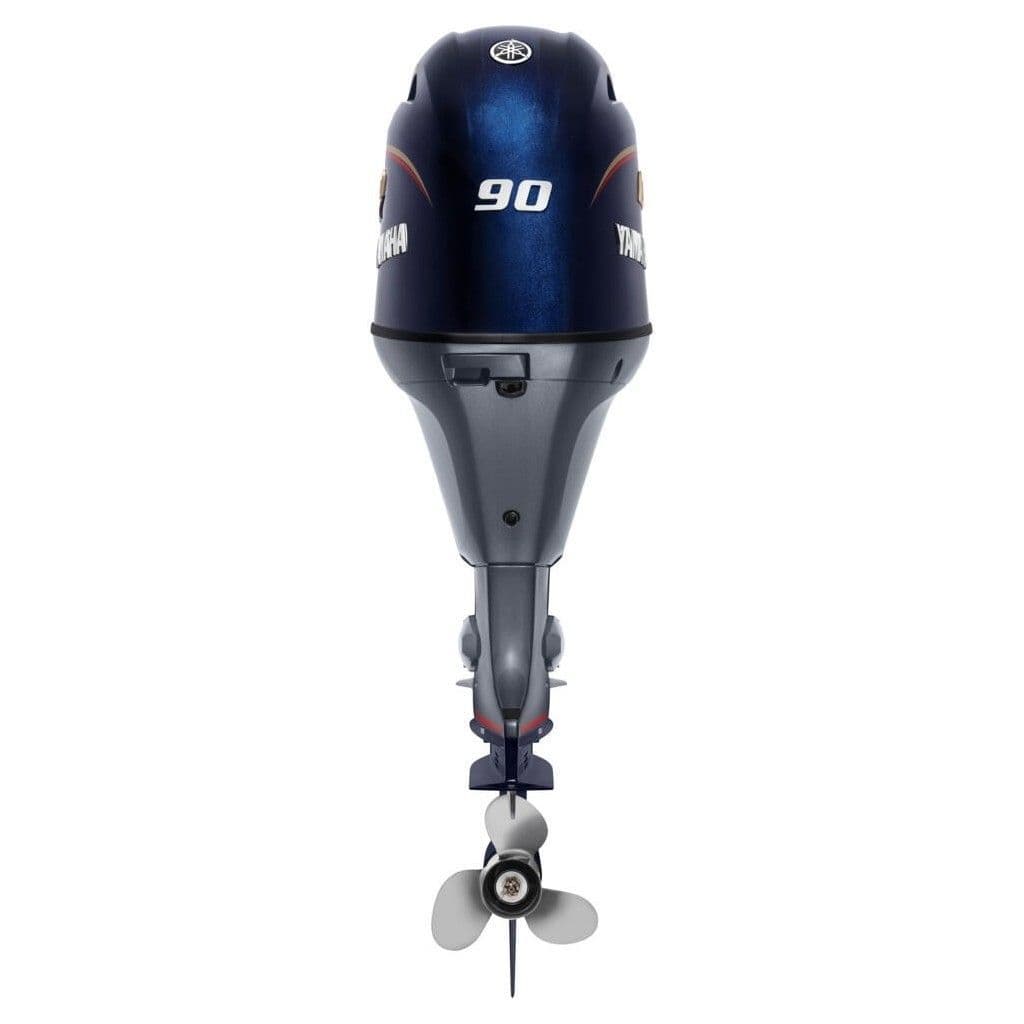

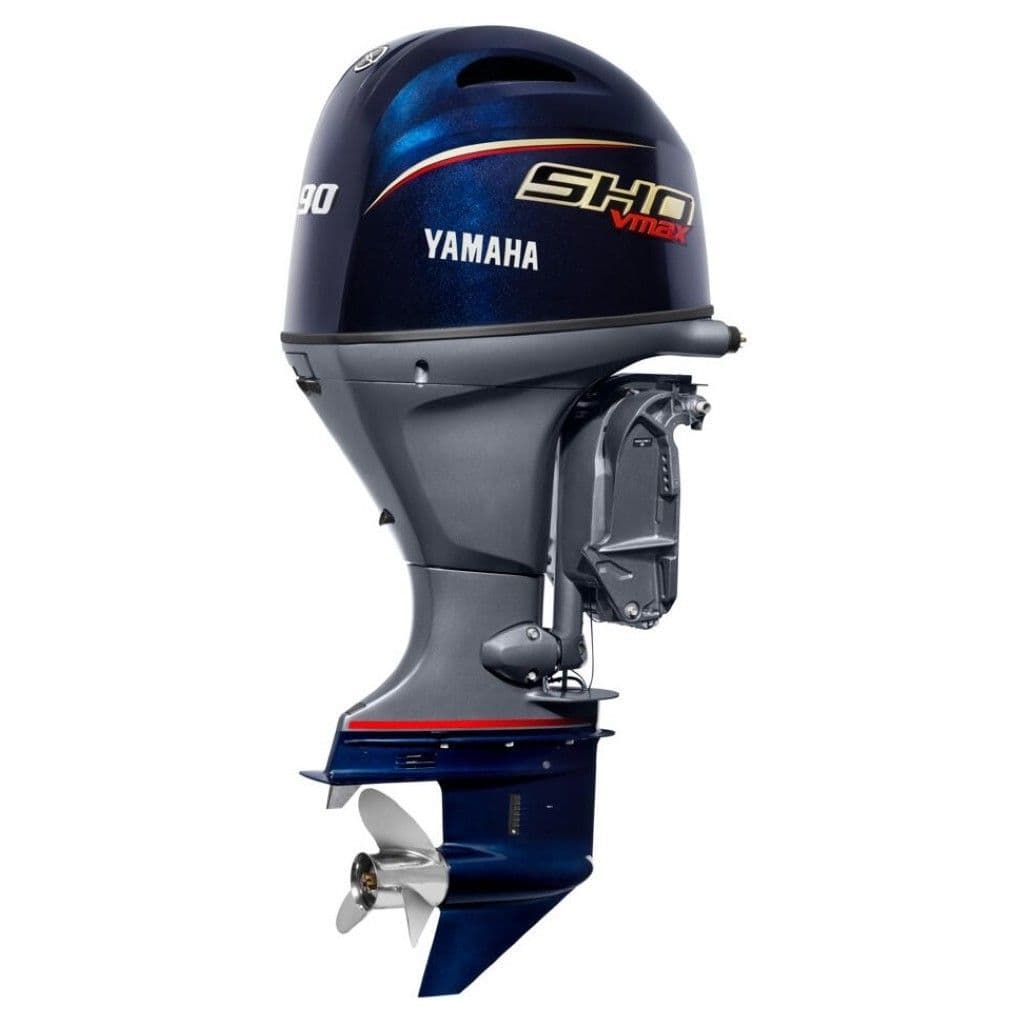

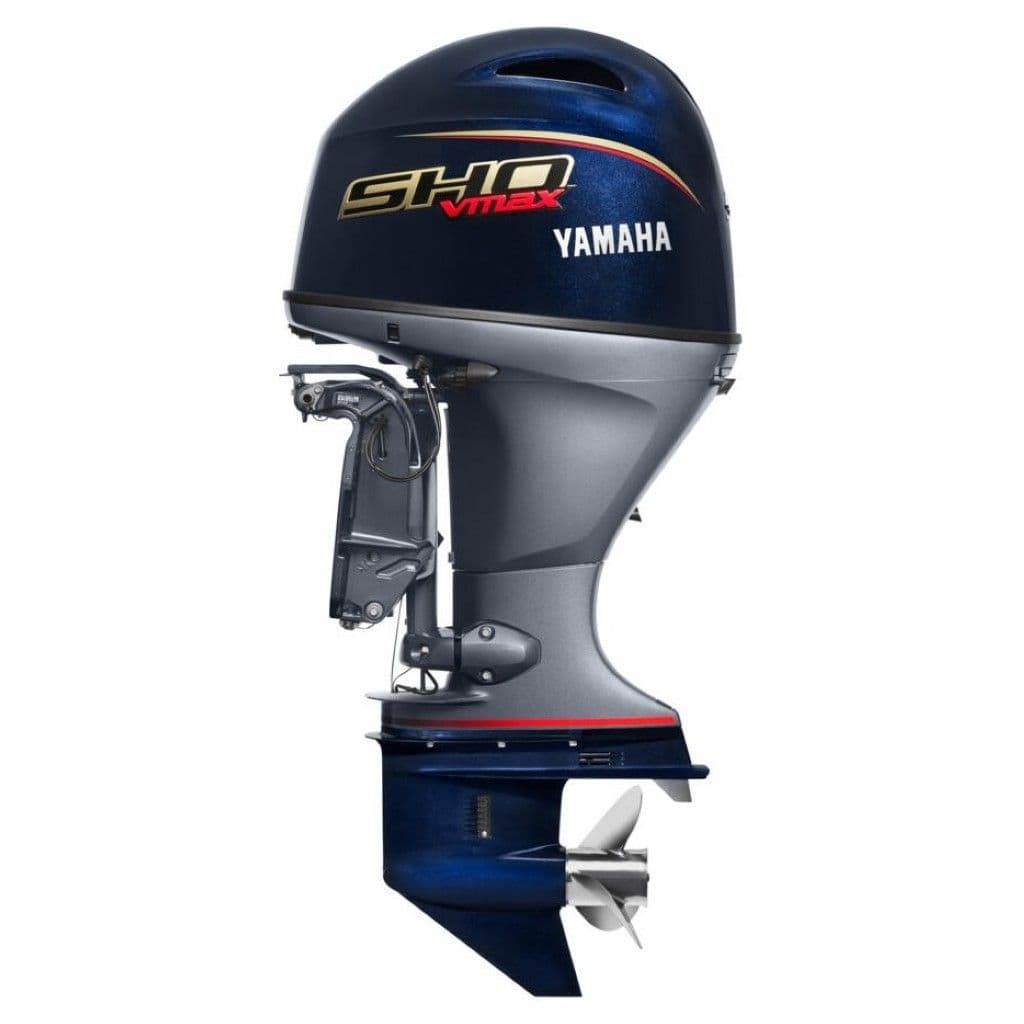

Yamaha 90HP 4-Stroke Electric

Remote Control | Electric Start | Power Trim And Tilt | 166kg

In technical terms, the V MAX SHO is a masterpiece of engineering craftsmanship. In order to achieve the results we wanted – low weight with high performance – our engineers came up with a single overhead camshaft format, with four large valves per cylinder and a special long-track intake manifold.

That’s why the V MAX SHO 90hp is ideally suited for the light, fast exciting boats that people use to get out and have fun with their friends. In fact, despite its compact size and modest weight, it still delivers best-in-class torque and high speeds – without compromising our signature quality.

Yamaha 90HP 4-Stroke Electric

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 1832 cm³
• No. of cylinders/configuration: 4/In-line, 16-valve, SOHC
• Bore x stroke: 81.0 mm x 88.9 mm
• Prop shaft output at mid range: 66.2kW / 90hp
• Full throttle operating range: 5,000 – 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: TCI
• Gear ratio: 2.33 (28/12)

Dimensions:

• Recommended boat transom height: X 643 mm
• Weight with propeller: 166 kg
• Oil pan capacity: 3.2 litres

Features:

• Control: Remote control
• Starting Method: Electric Start
• Trim and tilt method: Power trim and tilt
• Battery Charging: 12v – 35A Output
• Propeller: Included

Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits”
