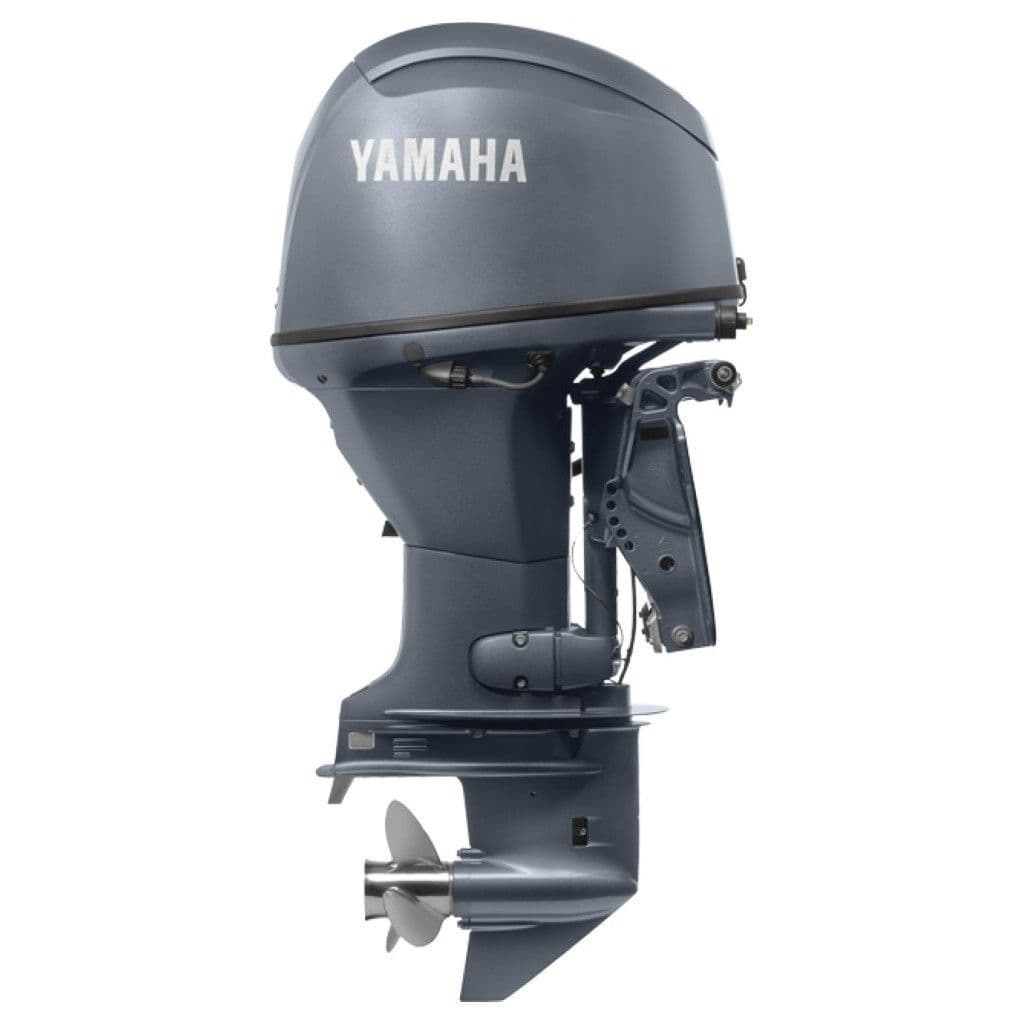

Yamaha 70HP 4-Stroke Electric

Remote Control | Electric Start | Power Trim And Tilt | 120kg

Offering unbeatable versatility, the lightweight F70 will power a wide range of boat types, so it’s equally at home when you’re working, or if you’re out to experience the fresh air and fun of leisure boating and watersports. In fact, the F70 is the lightest, most powerful 4-stroke in its class.

For cleaner performance, maximum fuel efficiency and easy starting, the powerful 16-valve SOHC engine features EFI(Electronic Fuel Injection) and Yamaha’s unique PrimeStart™ system. Compatibility with Yamaha’s Digital Network Gauges delivers precise control too.

Sleek and stylish too –your F70 is sure to attract admiring glances from everyone – whether aboard or on the shore.

Yamaha 70HP 4-Stroke Electric

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 996 cm³
• No. of cylinders/configuration: 4/In-line, 16-valve, SOHC
• Bore x stroke: 65.0 mm x 75.0 mm
• Prop shaft output at mid range: 51.5kW / 5,800 rpm
• Full throttle operating range: 5,300 – 6,300 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: TCI
• Gear ratio: 2.33 (28/12)

Dimensions:

• Recommended boat transom height: L 534 mm
• Weight with propeller: F70LB: 120 kg
• Fuel tank capacity: separate, 25 litres
• Oil pan capacity: 2.1 litres

Features:

• Control: Remote control
• Starting Method: Electric Start
• Trim and tilt method: Power trim and tilt
• Battery Charging: 12v – 15A Output
• Propeller: Included

Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits”
