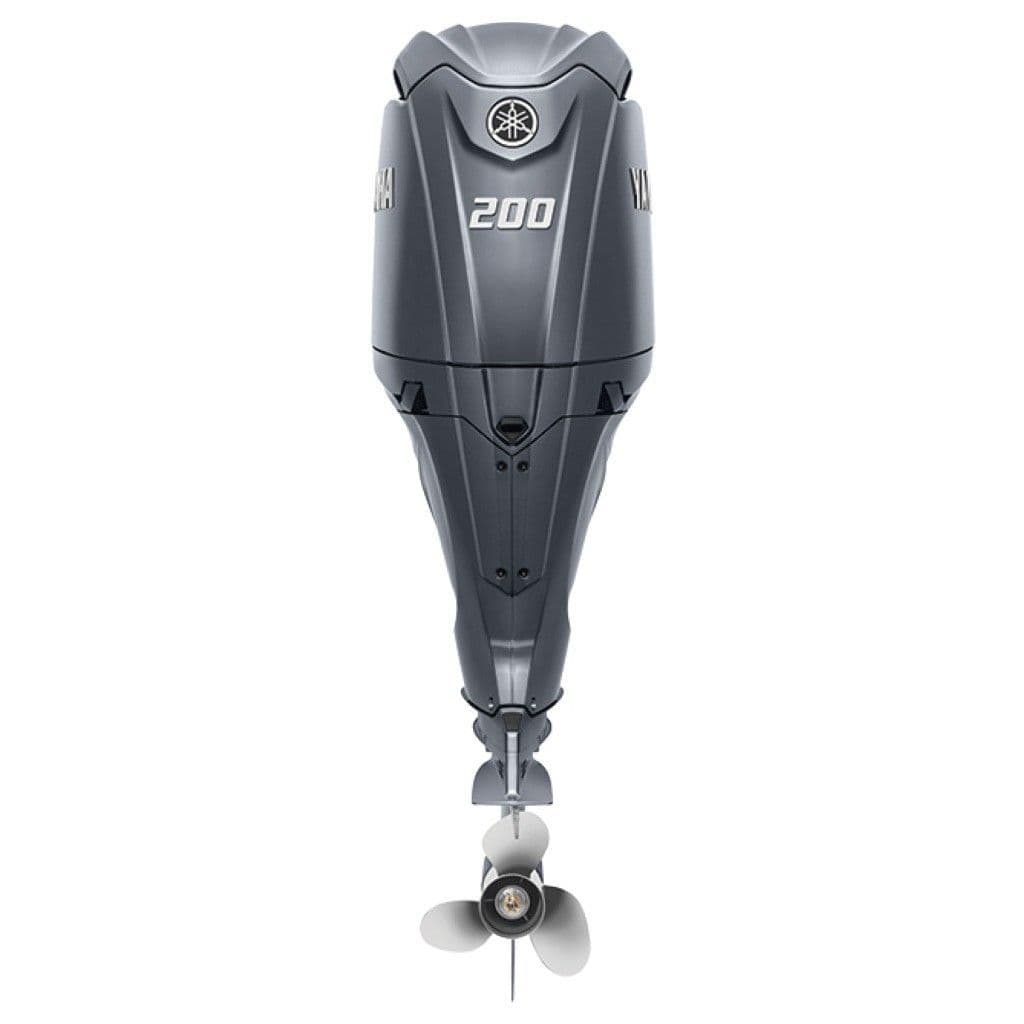

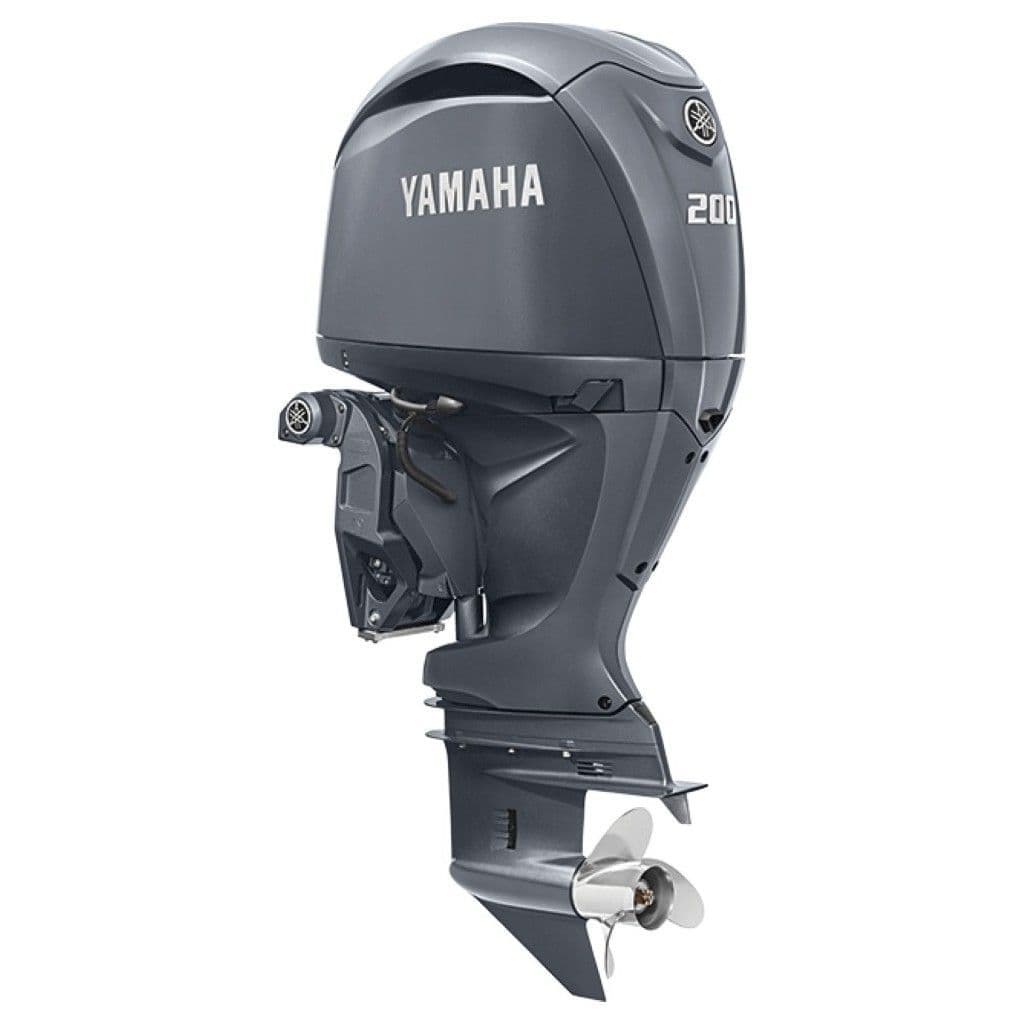

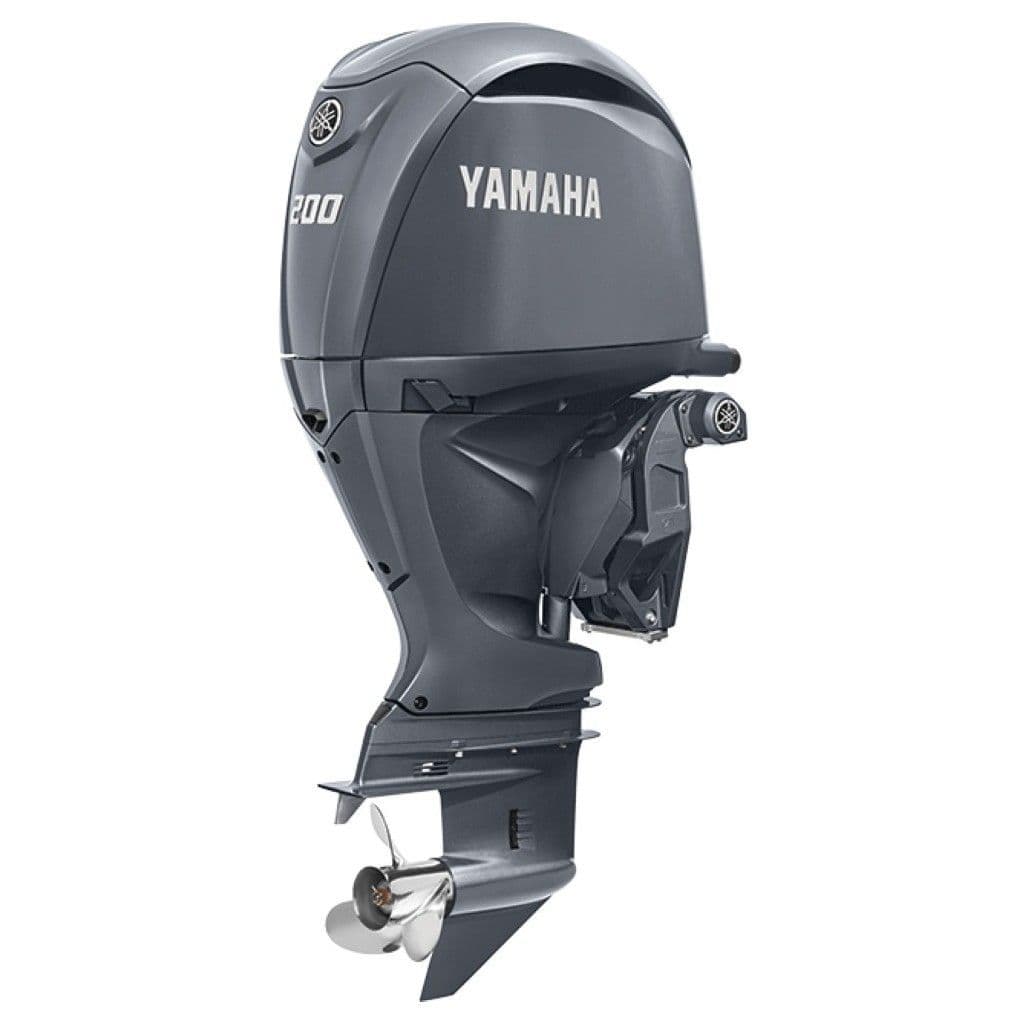

Yamaha 200HP Outboard

Counter Rotation | Drive By Wire Remote Control | Electro Hydraulic Steering | Electric Start | Power Trim And Tilt | 245kg

This new unit offers fresh styling and modern design, aligning the aesthetics of the Premium segment with the High-Power flagship outboards. But it’s not all about looks; a fuel efficient EFI system, microprocessor ECU and a variable camshaft timing improve performance and efficiency.

The 200hp engine benefits from enhanced connectivity across the board, linking Yamaha’s latest CL5 gauge and the latest drive-by-wire throttles for smooth shifting, with twin and triple engine throttles available.

Yamaha 200HP Outboard

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 2785 cm³
• No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
• Bore x stroke: 96.0 mm x 96.2 mm
• Prop shaft output at mid range: 147.1kW / 5,500 rpm
• Full throttle operating range: 5,000 – 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: TCI
• Gear ratio: 1.86 (26/14)

Dimensions:

• Recommended boat transom height: X 643 mm
• Weight with propeller: LF200XSA: 245 kg
• Oil pan capacity: 4.5 litres

Features:

• Steering: Integrated Electro Hydraulic Steering (EHS)
• Control: Drive By Wire Remote Control / Throttle and Gear (DBW RC)
• Starting Method: Electric Start (ES)
• Trim and tilt method: Power trim and tilt (PTT)
• Battery Charging: 12v – 50A Output
• Propeller: Included

Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits”
