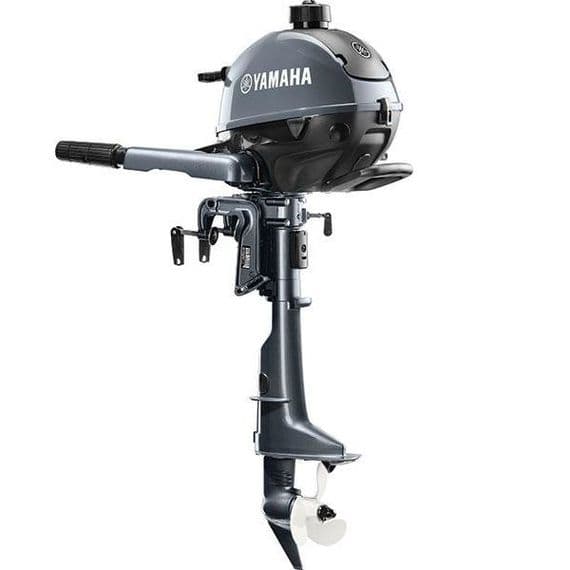

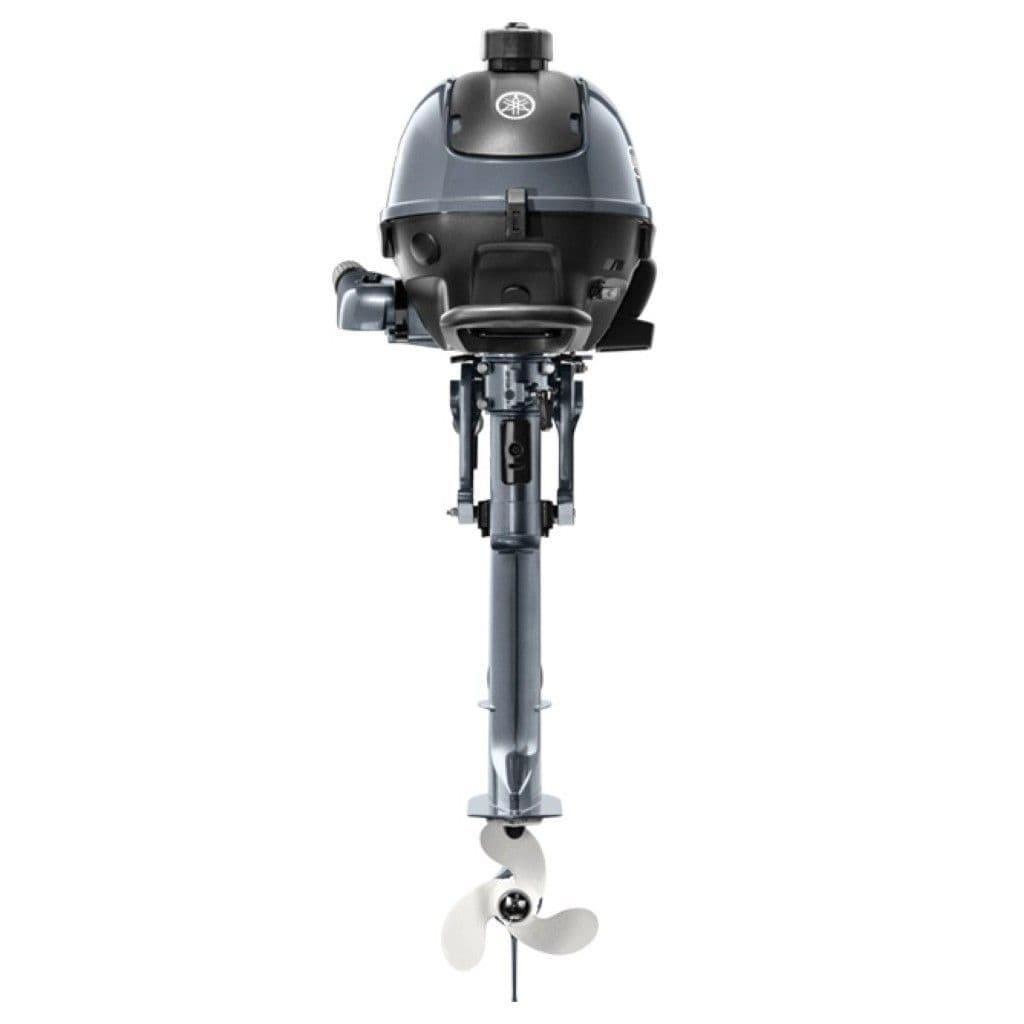

Yamaha 2.5HP Long Shaft

Tiller Control | Manual Start | Manual Tilt | 18kg

The latest / 2nd generation of 2.5hp four stroke from Yamaha brings with it a new sleek and compact design in addition to greater economy and user friendly features.

Yamaha 2.5HP Long Shaft

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 72 cc
• No. of cylinders/configuration: 1, OHV
• Bore x stroke: 54.0 mm x 31.5 mm
• Prop shaft output at mid range: 1.8kW / 5,500 rpm
• Full throttle operating range: 5,250 – 5,750 rpm
• Lubrication system: Splash
• Fuel Induction System: 1-Carb
• Ignition / advance system: TCI
• Starter system: Manual
• Gear ratio: 2.08 (27/13)

Dimensions:

• Recommended boat transom height: L:560mm
• Weight with propeller: F2.5LMHB: 18.0 kg
• Fuel tank capacity: 0.9 litres (Built-in fuel tank)
• Oil pan capacity: 0.4 litres

Features:

• Control: Tiller handle
• Start Method: Manual Pull
• Trim and tilt method: Manual
• Propeller: Included
