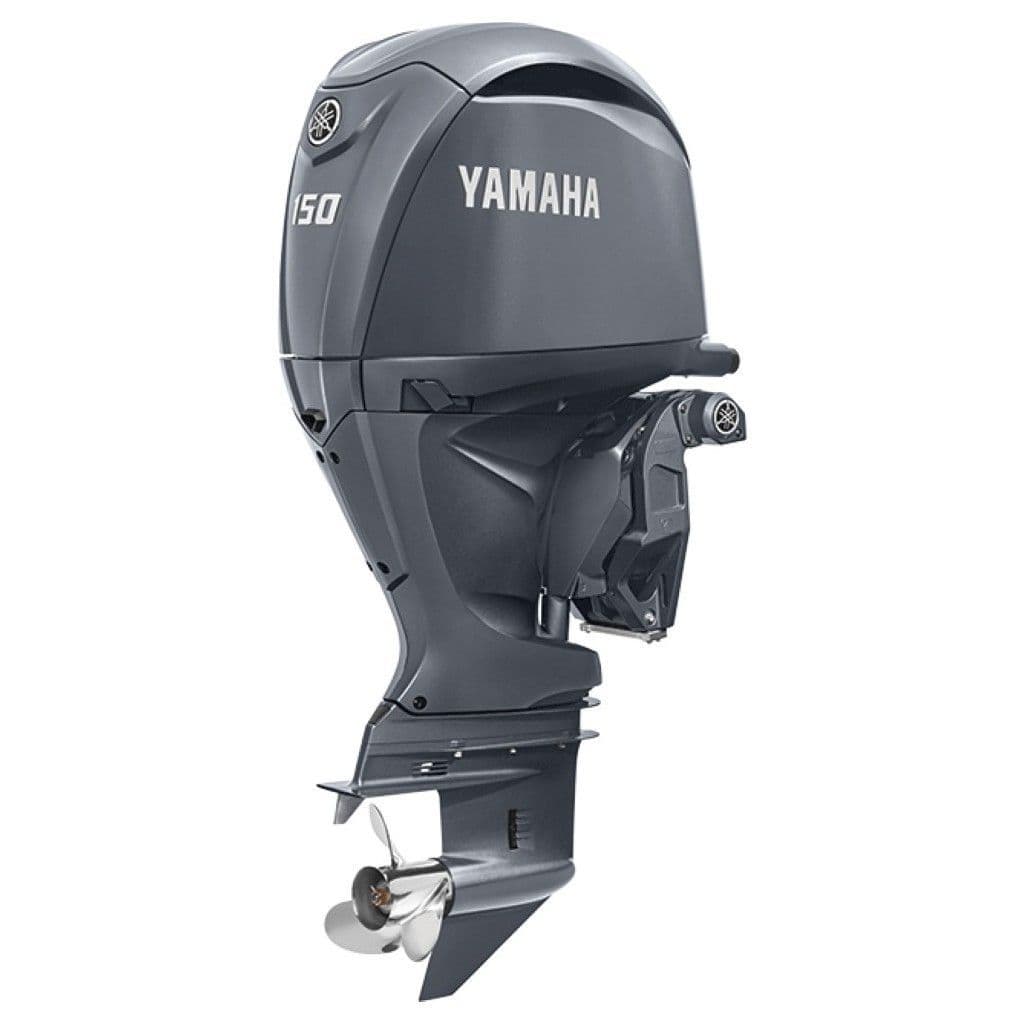

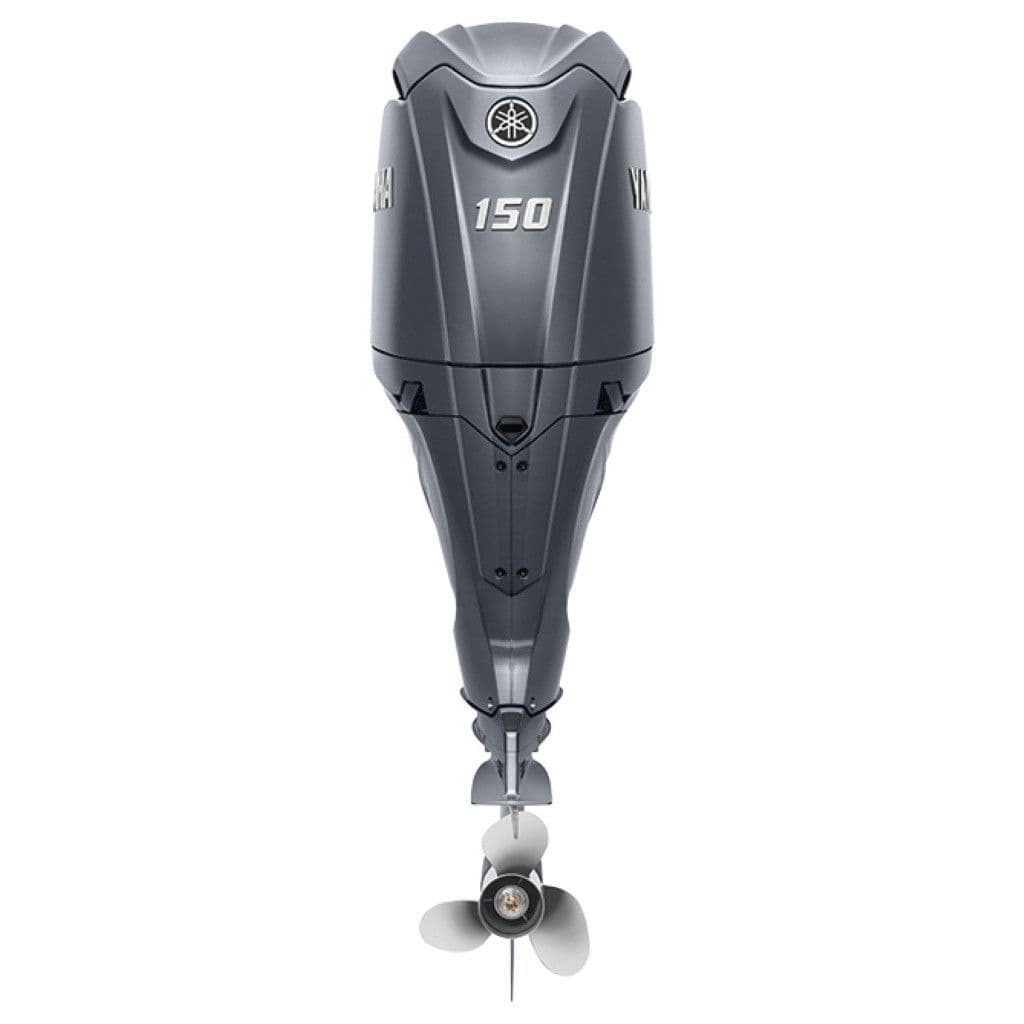

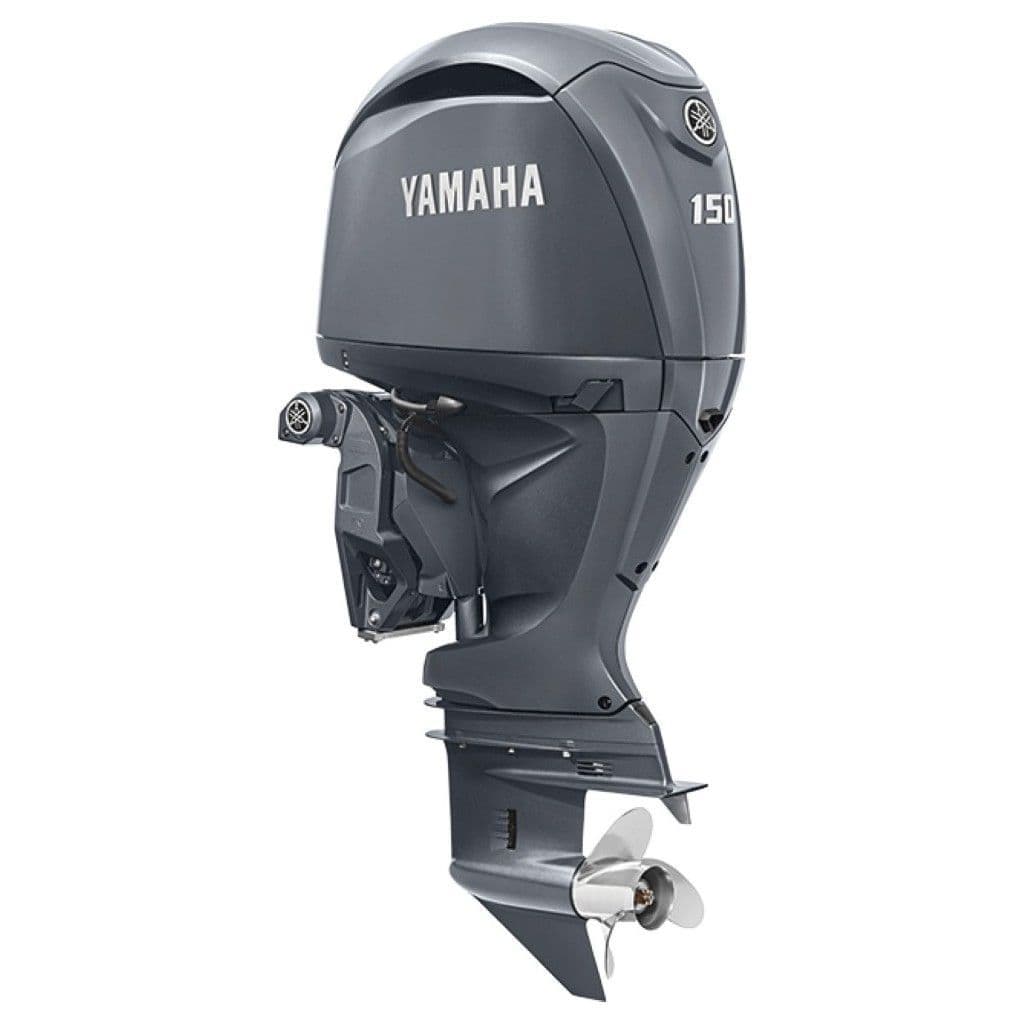

Yamaha 150HP Outboard

Counter Rotation | Drive By Wire Remote Control | Electro Hydraulic Steering | Electric Start | Power Trim And Tilt | 244kg

This new unit offers fresh styling and modern design, aligning the aesthetics of the Premium and High Power segments. The design cues and graphics on this engine are all pointers to the exciting technology that lives just inside.

The 150hp engine benefits from enhanced connectivity for greater control and confidence, linking with Helm Master EX®, Yamaha’s latest CL5 gauge and the latest Drive-by-Wire throttles for smooth shifting, with single and multiple engine throttles available

Yamaha 150HP Outboard

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 2785 cm³
• No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
• Bore x stroke: 96.0 mm x 96.2 mm
• Prop shaft output at mid range: 110.3kW / 5,500 rpm
• Full throttle operating range: 5,000 – 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: TCI
• Gear ratio: 1.86 (26/14)

Dimensions:

• Recommended boat transom height: X 643 mm
• Weight with propeller: LF150XSA: 244 kg
• Oil pan capacity: 4.5 litres

Features:

• Steering: Integrated Electro Hydraulic Steering (EHS)
• Control: Drive By Wire Remote Control / Throttle and Gear (DBW RC)
• Starting Method: Electric Start (ES)
• Trim & tilt method: Power trim & tilt (PTT)
• Battery Charging: 12v – 50A Output
• Propeller: Included

Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits”
