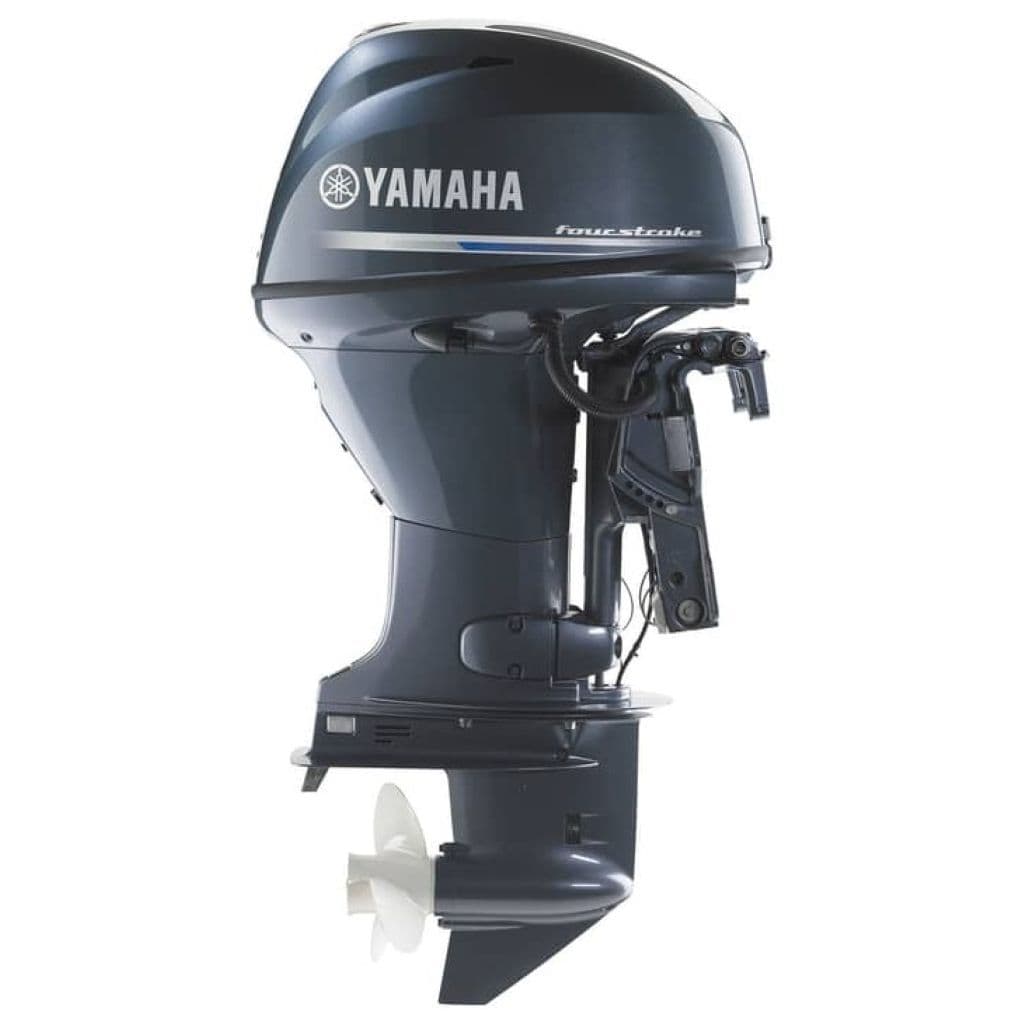

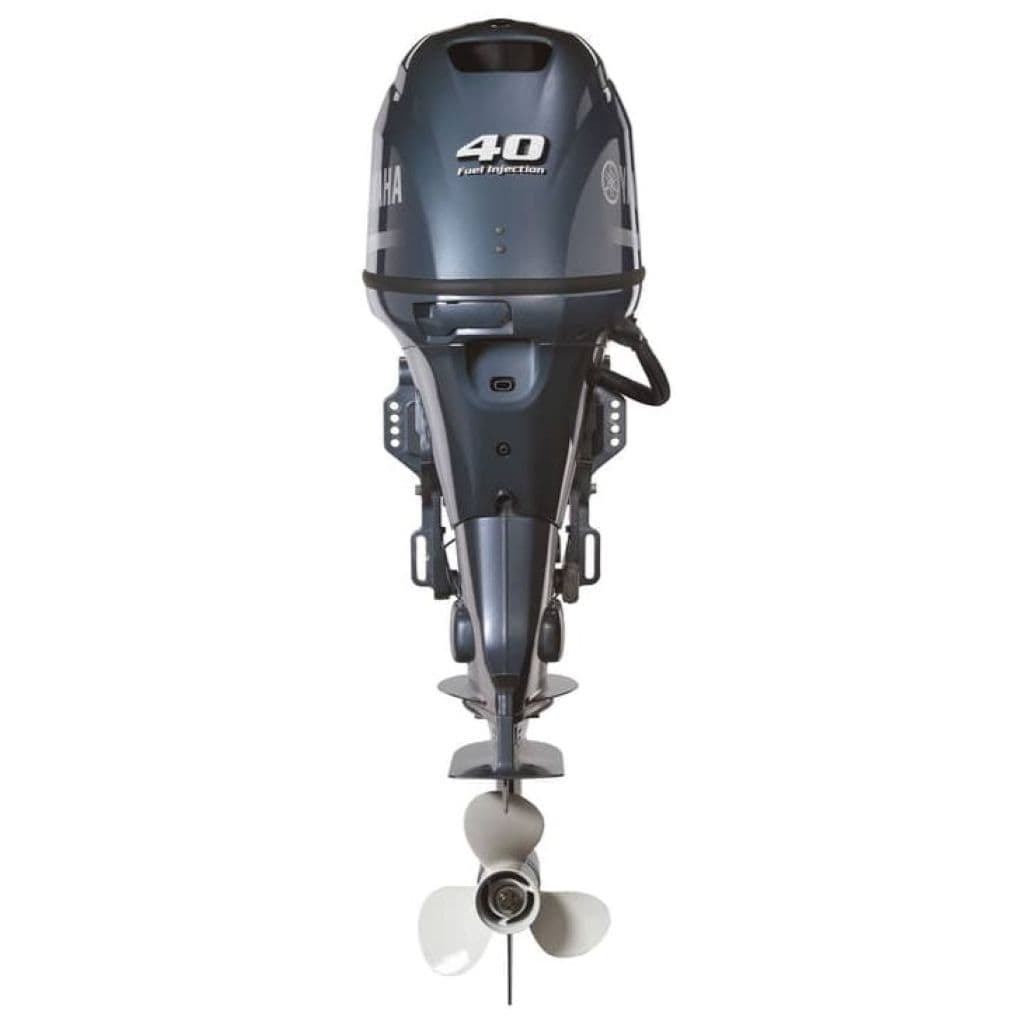

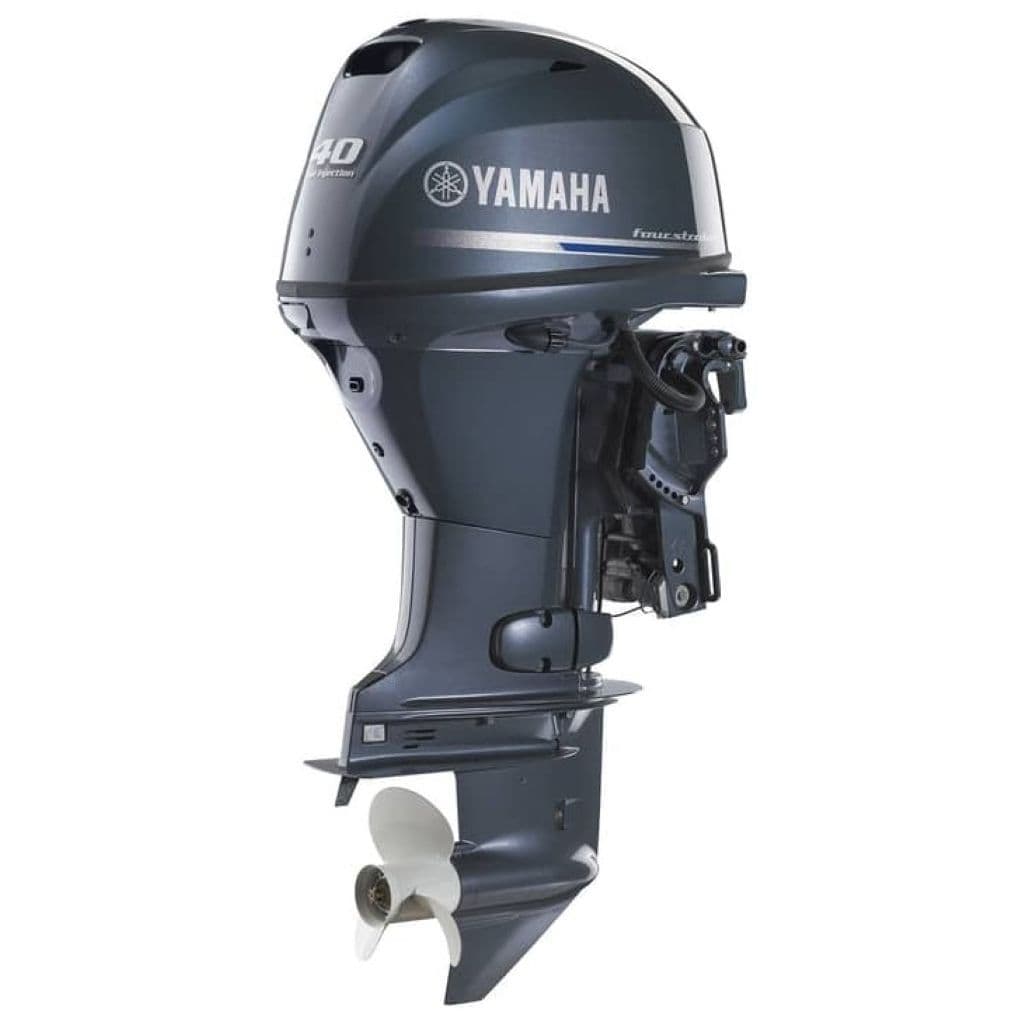

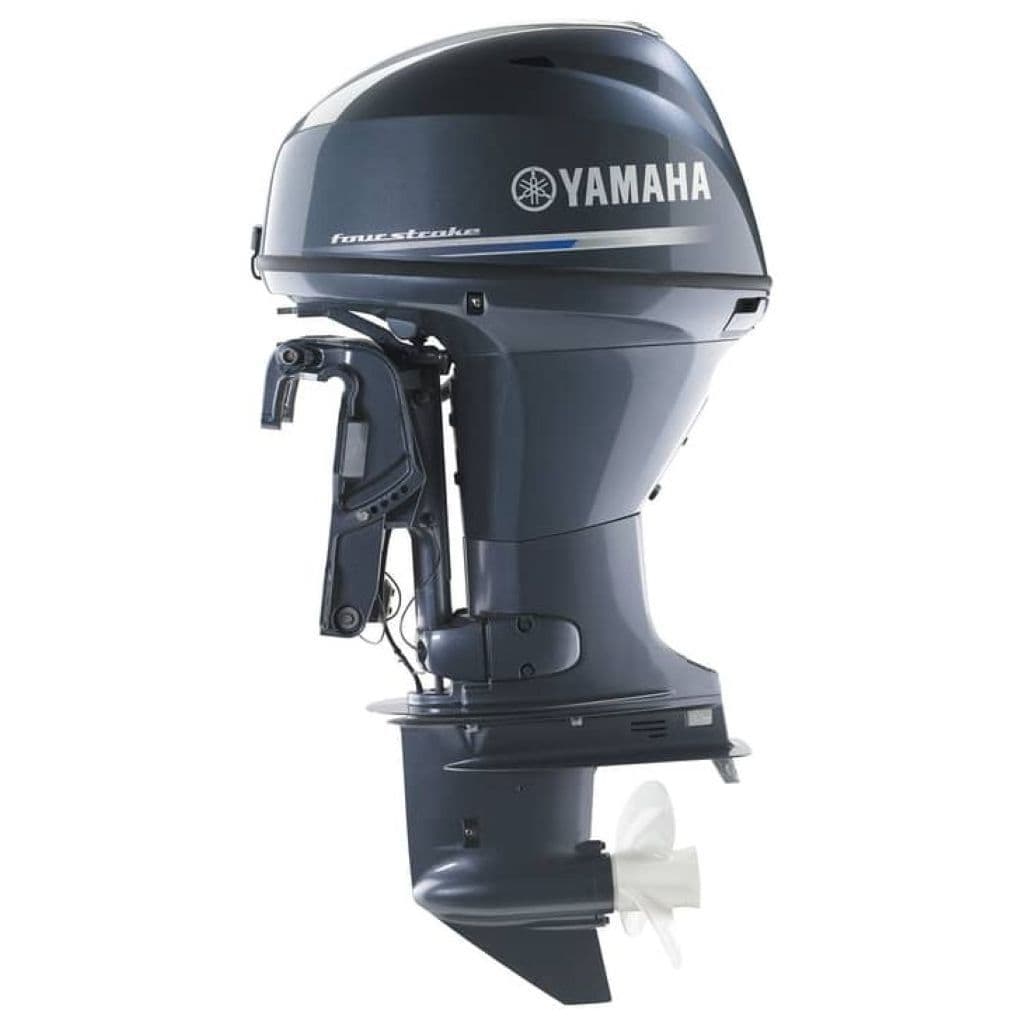

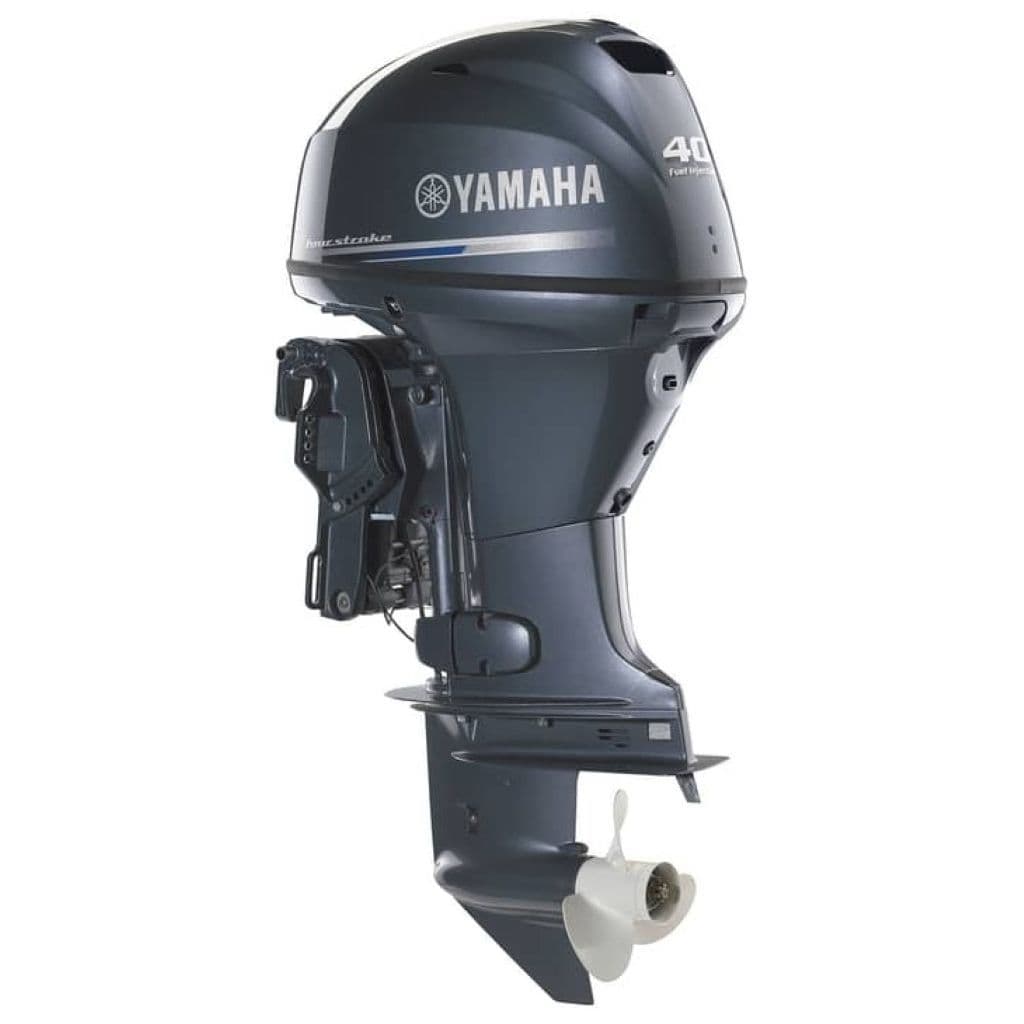

Yamaha 40HP 4-Stroke Electric

Remote Control | Electric Start | Power Trim and Tilt | 98kg

The lightweight F40 and F30 are designed for simple installation and ease of use, but they’re packed with reliable, dependable ;power too.

Yamaha’s Electronic Fuel Injection system (EFI) delivers impressive power at high speeds, plus real mid-range punch and torque along with outstanding economy. PrimeStart™ makes starting up as effortless as it is in your car and since this is a Yamaha, that means first time, every time. Our unique Wide Range Power Trim and Tilt system then lets you take full control.

Yamaha 40HP 4-Stroke Electric

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 747 cc
• No. of cylinders/configuration: 3/In-line, SOHC
• Bore x stroke: 65.0 mm x 75.0 mm
• Prop shaft output at mid range: 29.4kW / 5,500 rpm
• Full throttle operating range: 5,000 – 6,000 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: CDI
• Gear ratio: 2.00 (26/13)

Dimensions:

• Recommended boat transom height: L 536 mm
• Weight with propeller: F40FETL: 98 kg
• Fuel tank capacity: separate, 25 litres
• Oil pan capacity: 1.7 litres

Features:

• Control: Remote control
• Starting Method: Electric Start
• Trim and tilt method: Power trim and tilt
• Battery Charging: 12v – 17A Output
• Propeller: Included

Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits”
