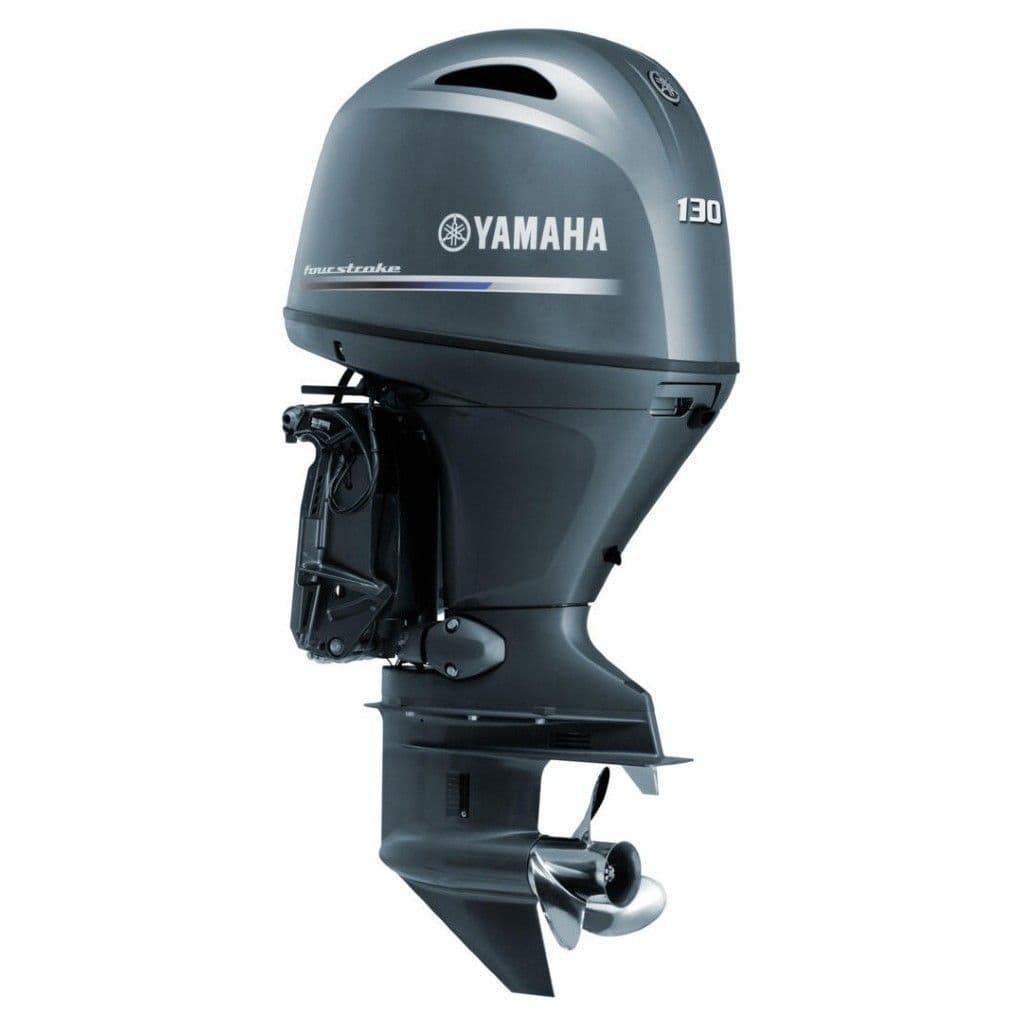

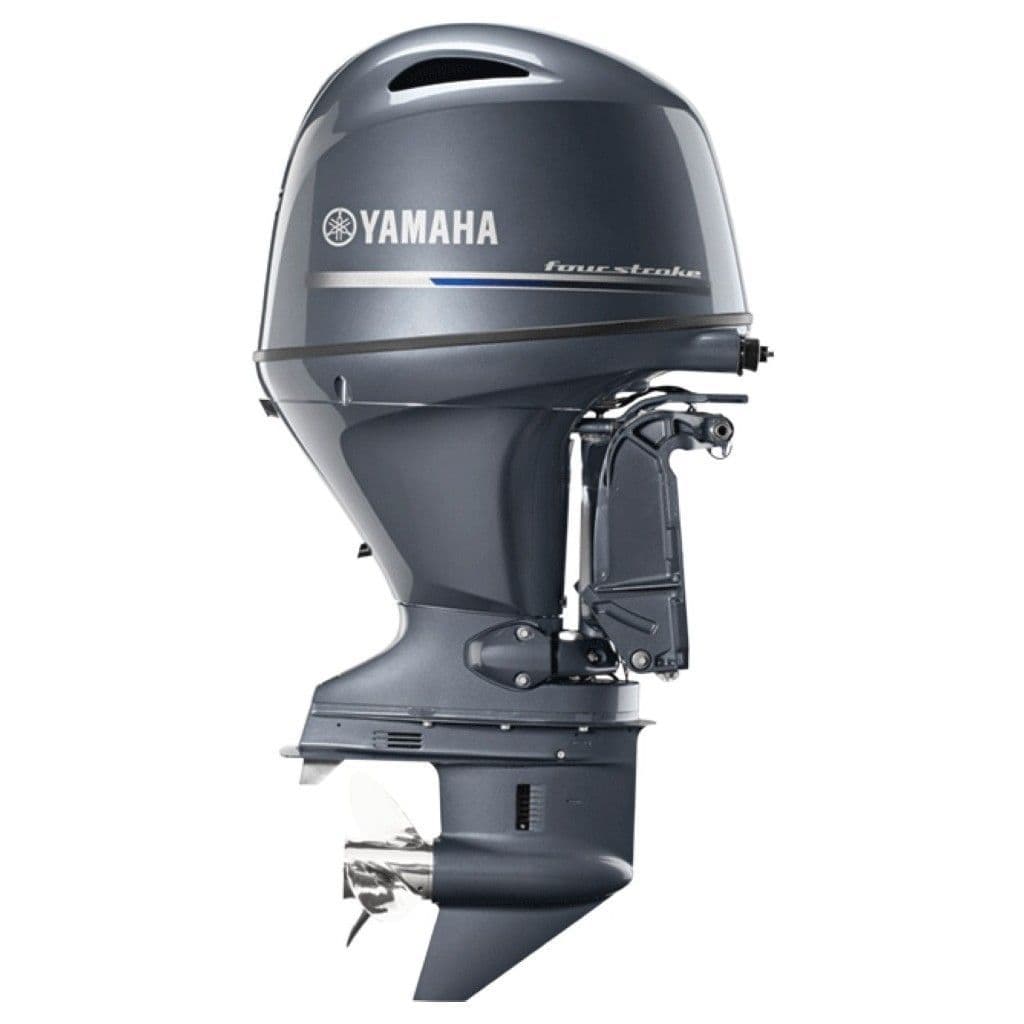

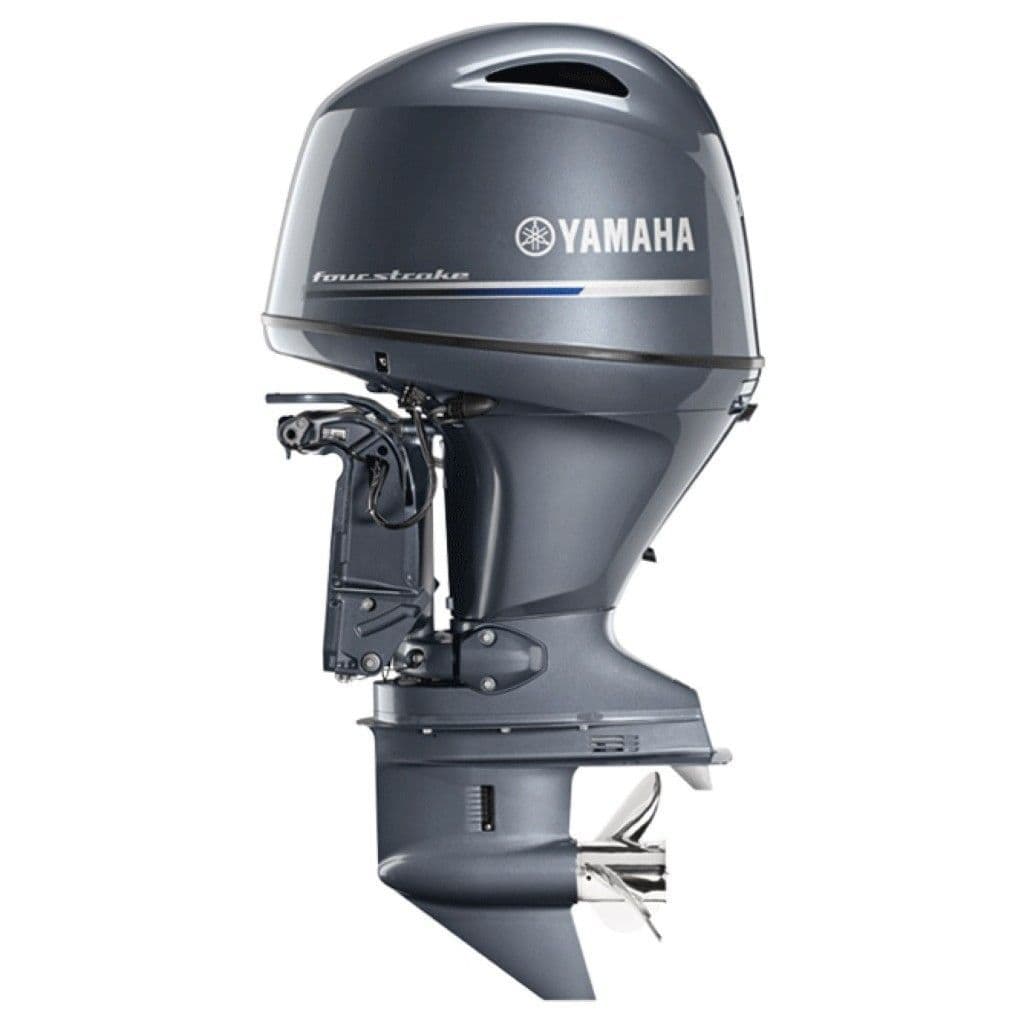

Yamaha 130HP Outboard

Remote Control | Electric Start | Power Trim And Tilt | 180kg

The latest-generation, lightweight designs F115 and F130 let you relax and enjoy your boat to the full – knowing you’re powered by the cleanest, smoothest engines on the planet.

Not only is the engineering impressive – these are 1.8 litre, 16 big Valve, in-line, 4-cylinder, DOHC, 4-stroke engines – but they are blended with a host of electro/technical features to make life easier, such as: Compatibility with our optional Digital Network System, Y-COP® remote security, Wide Range Power Trim & Tilt with Tilt angle limiter option, to name but a few.

The efficiency of our well proven EFI systems and other new combustion technologies ensure the utter dependability of these outstanding Yamaha engines.

Yamaha 130HP Outboard

Engine Specifications:

• Engine type: 4-stroke
• Displacement: 1832 cm³
• No. of cylinders/configuration: 4/In-line, 16-valve, DOHC
• Bore x stroke: 81.0 mm x 88.9 mm
• Prop shaft output at mid range: 95.6kW / 6,300 rpm
• Full throttle operating range: 5,300 – 6,300 rpm
• Lubrication system: Wet sump
• Fuel Induction System: EFI
• Ignition / advance system: TCI
• Gear ratio: 2.15 (28/13)

Dimensions:

• Recommended boat transom height: X 643 mm
• Weight with propeller: F130XA: 180 kg
• Oil pan capacity: 3.2 litres

Features:

• Control: Remote control
• Starting Method: Electric Start
• Trim and tilt method: Power trim and tilt
• Battery Charging:12v – 35A Output
• Propeller: Included

Rigging Options Available – See Our “Yamaha Outboard Control Box and Rigging Kits”
